Hard work, integrity, win-win cooperation
 |
| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-F004 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Product Name: | FPC FFC Flexible Flat Cable | Type: | FPC |
|---|---|---|---|
| Pin Number: | 2-120 | Insulation Materials: | Mylar, Others |
| Maximum Outer Diameter Of Wire: | 30mm | Pitch: | 0.5-2.54mm |
| Substrate: | With Glue AR | Processing Technology: | Rolled Foil |
| High Light: | 30mm fPC flex cable,2.54mm flexible flat wire |
||

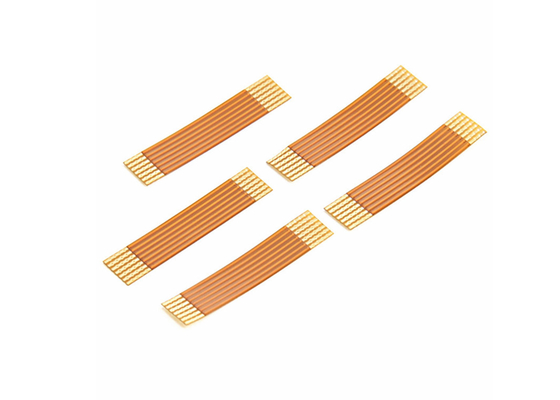

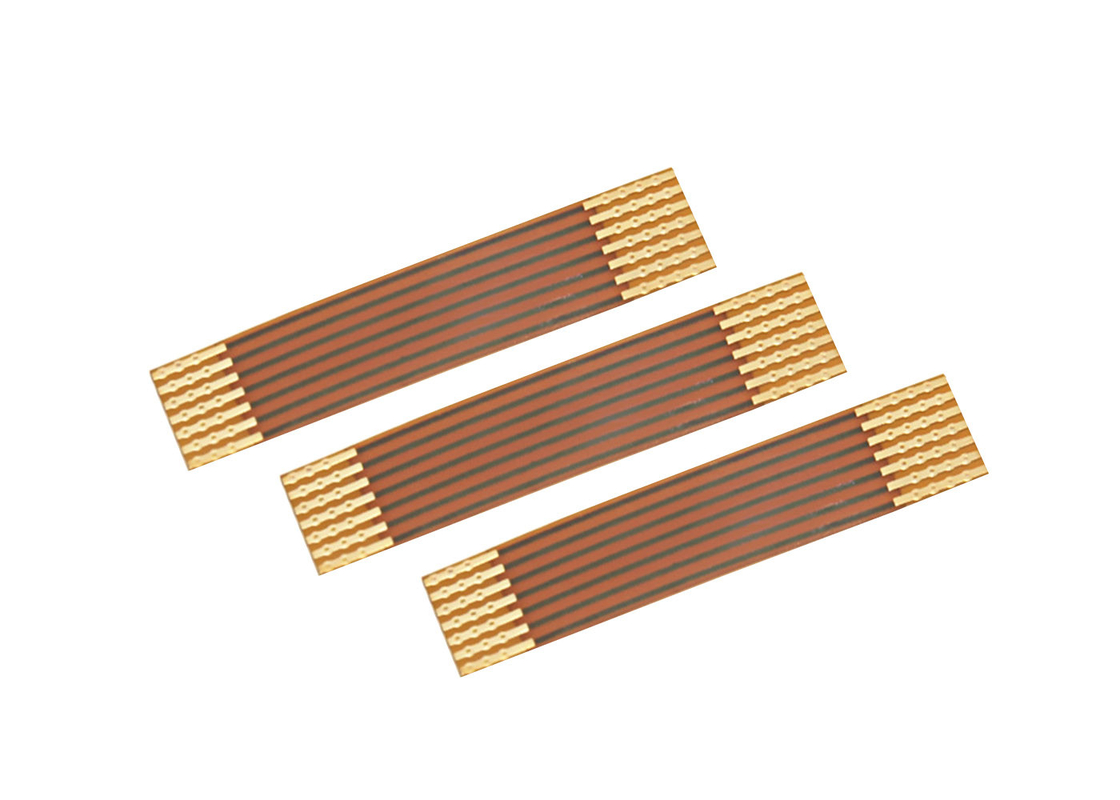

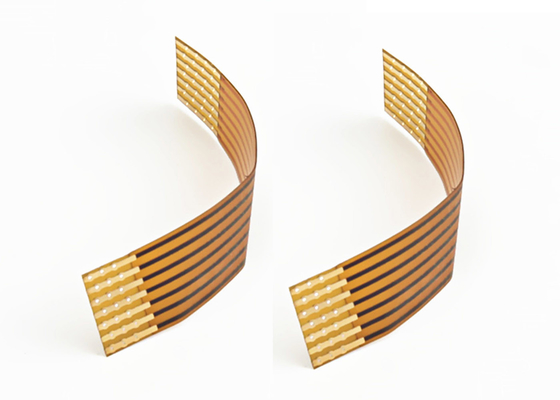

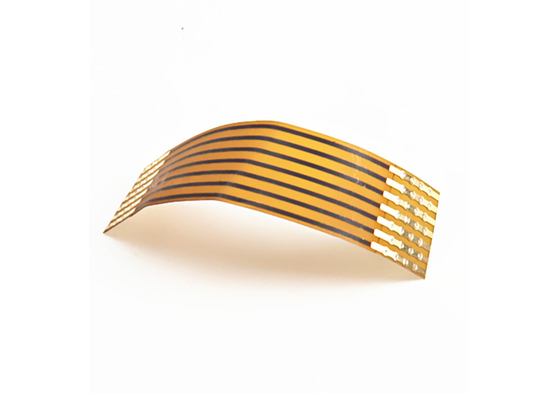

FPC Cable FFC Flexible Flat Cable Custom Welding Finger Double-Sided Cable
Product introduction
Flexible circuit board, also known as "flexible board", is a printed circuit made of flexible insulating substrate. Flexible circuits provide excellent electrical performance, can meet the design needs of smaller and higher density installations, and also help reduce assembly processes and enhance reliability. Flexible circuit boards are the only solution to meet the miniaturization and mobility requirements of electronic products. It can be freely bent, wound and folded, can withstand millions of times of dynamic bending without damaging the wires, can be arbitrarily arranged according to the space layout requirements, and can be arbitrarily moved and stretched in the three-dimensional space, so as to achieve the integration of component assembly and wire connection The flexible circuit board can greatly reduce the volume and weight of electronic products, and is suitable for the development of electronic products in the direction of high density, miniaturization and high reliability.
Parameter:
| Pin number | 2-120 |
| Brand Name | SYH |
| Maximum outer diameter of wire | 30mm |
| Insulation thickness | Conventional board |
|
Insulation Materials
|
Mylar, others
|
| Pitch | 0.5-2.54mm |
| Connectors | Customized |
| Wire | Customized |
| Wire length | According to the customers' requirements |
| Wire Color | Customized |
| Certification | ISO9001, T/S16949, Rohs |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
Professional custom poly-milling imine flexible cable, single-sided plug-in cable, double-sided plug-in cable, double-sided welding cable, 5PIN, 6PIN, 7PIN and other specifications cables;
The minimum processing aperture is 0.1mm;
The amount of line width is 0.07mm;
Maximum processing layer number 8L;
The minimum processing size is 1*1mm;
Maximum processing size 500*2500mm;
Flexible flat flexible cable:
① PITCH (Pitch): 0.5mm 0.8mm 1.0mm 1.25mm 1.27mm 2.0mm 2.54mm
② Conductor specifications: 0.035*0.030, 0.035*0.65, 0.05*0.5, 0.05*0.065, 0.1*0.65, 0.1*0.8;
③ Number of cable screens: 2P-120P;
④ Cable length: 15mm-Nm;
We can produce series of iso wire harnesses
1. Industrial Wiring Harness
2. Ffc Flexible Flat Cable
3. Idc Ribbon Cable
4. Lvds Cable
5. Custom Wiring Harness
6. Overmolded Cable Assemblies
7. Communication Wires And Cables
8. High Gain Wifi Antenna
9. New Energy Vehicle Wiring Harness
10. Medical Wiring Harness
11. Automotive Wiring Harness
12. Electronic Wiring Harness
13. Industrial Wiring Harness
14. Converter Adapter Cable
15. Waterproof Cable Wire
