Hard work, integrity, win-win cooperation
 |
| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-F019 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Product Name: | FFC /FPC Flexible Flat Cable | Shape: | Strip |
|---|---|---|---|
| Interface Type: | Customized | Application: | PCB |
| Pitch: | 0.5mm Or Customized | PIN: | 8pins Or Customized |
| Wire Gauge: | 28AWG Or Customized | Wire Length: | 100mm Or Customized |
| Highlight: | 8 pins FPC Flat Cable,28 AWG FPC Flat Cable |
||

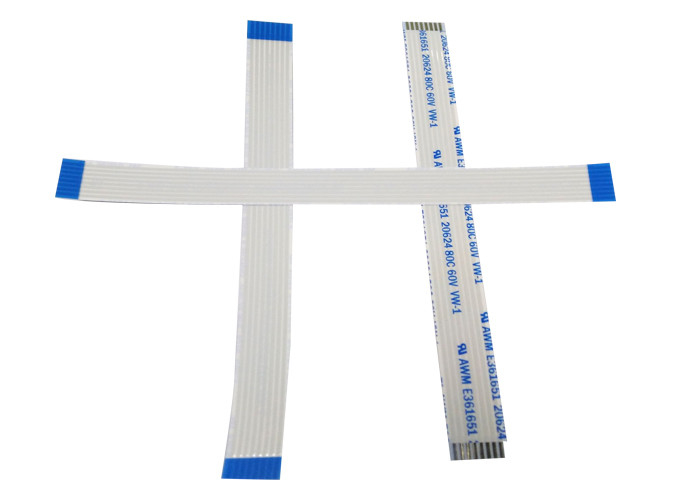

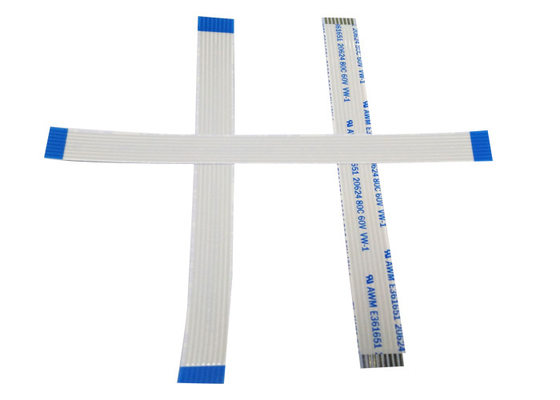

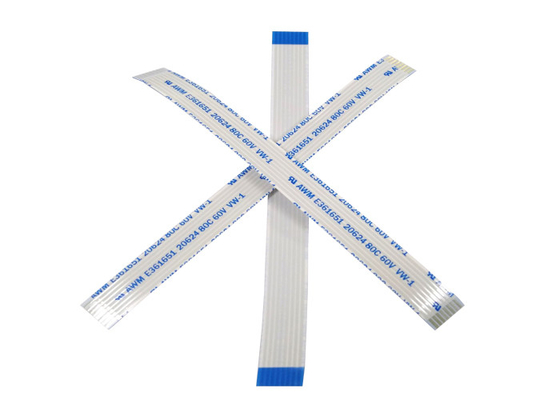

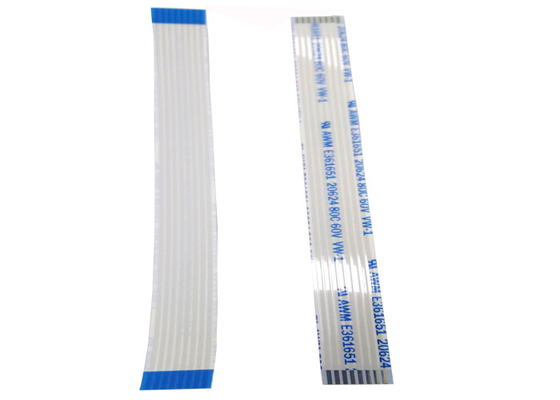

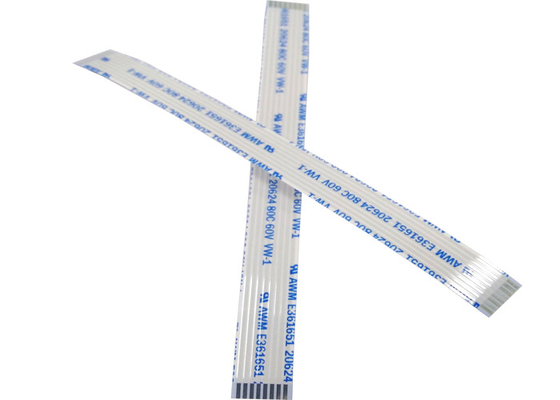

8pins 28AWG Strip FFC Flexible Flat Cable 0.5mm Pitch UL FPC Flat Cable
Product information :
FFC (flexible flat cables) are a type of ribbon cable, so named due to their wide flat structure. They are usually a straight connector, without any additional components. FFC cables usually consist of a plastic film, to which multiple metallic connectors are bonded and the spacing between each connector is referred to as the ‘pitch’.
The construction of FFC cables means they take up less space and offer greater flexibility than round cables and often offer better EMI/RFI suppression as well as eliminating wire coupling issues.
They tend to be used in high density electronic systems especially where high-flexibility is required, for example connections to a moving printer head, folding mobile-phones or where there are weight or space limitations.
SYH offers a selection of FFC cables with 0.5mm, 0.8mm, 1mm, 1.25mm and 2.54mm pitch options suitable for soldering or pug-in connections.
Parameter:
|
Product name |
FFC /FPC Flexible Flat Cable |
|
Shape |
Strip |
|
Interface type |
Customized |
|
Contact material |
Cooper |
|
Application |
PCB |
|
Resistance |
Standard |
|
Pitch |
0.5mm or customized |
|
Work frequency |
Low frequency |
|
Features |
Fire retardant/flame retardant |
|
PIN |
8pins or customized |
|
Insulation thickness |
Customized |
|
Wire gauge |
28AWG or Customized |
|
Wire Color |
Customized |
|
Wire length |
100mm or According to the customers' requirements |
|
Certificates |
RoHS,CE,UL,TUV,ISO |
|
MOQ |
Small quantity can be accepted |
|
Sample |
Samples confirmed first before mass production |
|
Sevice |
OEM ODM accepted |
|
Delivery Time |
3-15 days upon receipt of payment |
|
Packaging |
00/200/300/500pcs per bag , then outside carton |
|
Test |
Professional breakover and pulling force test before goods sent out |
|
Lead time |
3-15 days |
Our products are as follows:
1. Industrial Wiring Harness
2. Ffc Flexible Flat Cable
3. Idc Ribbon Cable
4. Lvds Cable
5. Custom Wiring Harness
6. Overmolded Cable Assemblies
7. Communication Wires And Cables
8. High Gain Wifi Antenna
9. New Energy Vehicle Wiring Harness
10. Medical Wiring Harness
11. Automotive Wiring Harness
12. Electronic Wiring Harness
13. Industrial Wiring Harness
14. Converter Adapter Cable
15. Waterproof Cable Wire
Shipping:
1.FedEx/DHL/TNT/UPS/EMS/Aramex/SF for samples, Door-to-Door;
2. By Air or by Sea for batch goods;Airportport receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 10-30 days for batch goods.
Production equipment :
Fully Automatic Wire Cutting Striping and Crimping Machine
Wire Cutting and Stripping Machine
Multi Core Cable Cutting and De-sheathing Machine
Pneumatic Core Stripper
Wire Cutting Stripping and Twisting Machine
Microprocessor Based Battery Cable Cutting Machine
Pneumatic Cable Outer Jacket Removal Machine
Pneumatic Crimping Machine for Scattered Terminals
Semi Automatic Crimping Machines
Electronic Crimping Presses
Applicators
Toggle Crimping Machines
Wire Stripping and Twisting Machines
Soldering Station
Coupler Assembly Station
Air Compressor ( 3 Hp and 5 Hp)
25 Kva Generator
Microprocessor Based Harness Tester
