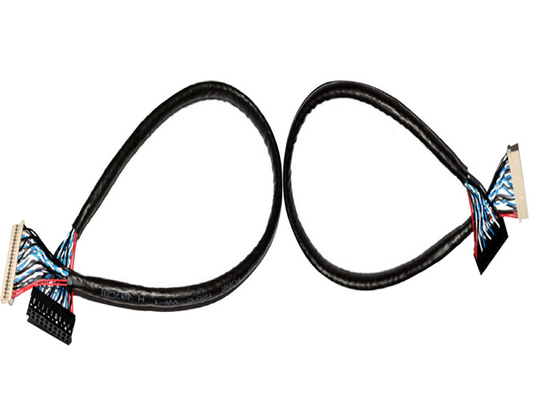

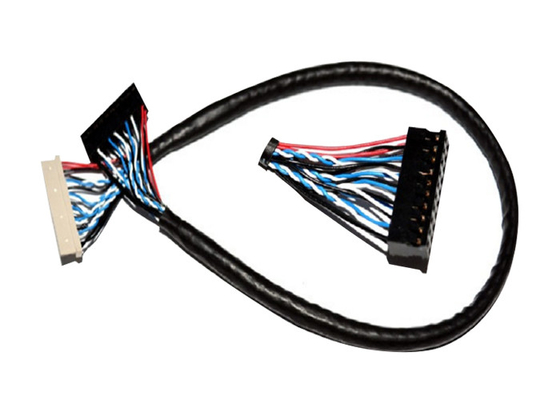

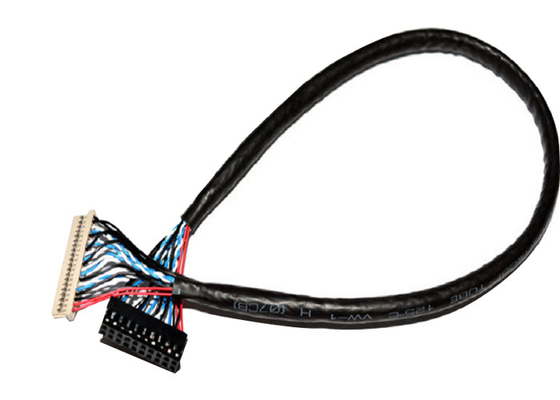

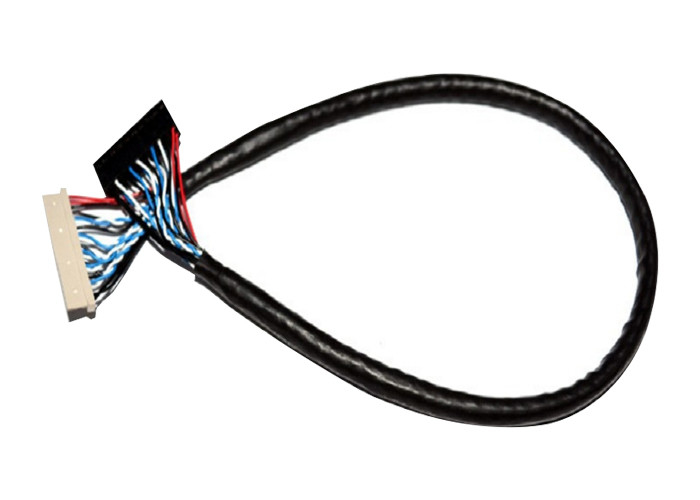

Low Frequency 20 Pins 1.0mm UL 200mm LVDS Cable

UL 200mm LVDS Cable 20pins 1.0mm Pitch PVC LCD Screen LVDS Connection Cable

Product overview :

LVDS interface, also known as RS-644 bus interface, is a data transmission and interface technology. LVDS is a low-voltage differential signal. The core of this technology is to use a very low voltage swing for high-speed differential transmission of data. It can achieve point-to-point or point-to-multipoint connections. It has low power consumption, low bit error rate, low crosstalk and For low-emission characteristics, the transmission medium can be a copper PCB connection or a balanced cable. LVDS is more and more widely used in systems that require high signal integrity, low jitter, and common model performance. At present, the popular LVDS technical specifications have two standards: one is the ANSI/TIA/EIA-644 standard of TIA/EIA (Telecommunications Industry Alliance/Electronic Industry Alliance), and the other is the IEEE 1596.3 standard.These two standards focus on the specifications of the electrical characteristics, interconnection and line termination of the LVDS interface, but are not clear about the production process, transmission medium and power supply voltage. LVDS can be implemented with CMOS, GaAs or other technologies, and its power supply voltage can be from +5V to +3.3V or even lower; its transmission medium can be a PCB connection or a special cable. The standard recommends a maximum data transmission rate of 655Mbps, and in theory, on a lossless transmission line, the maximum transmission rate of LVDS can reach 1.923Gbps.

Parameter:

Conductor Sizes

We can extrude conductors as small as 34 gauge and as large as 12 gauge. These can be combined to create a mixed gauge cable.

Conductor Colors

Our custom wire and cable harness capabilities are extensive, from 1 conductor to cables with more than 50 conductors. Custom colors, striping and marking are available to meet your wiring harness design requirements.

Stranding Sizes

Your conductors can be made with stranding as small as 0.002 inches (0.05mm) which is excellent for hi-flex, supple cables. If you just need a standard power conductor we can use stranding as large as 0.01 inches (0.25 mm). Stranding can be bare copper, tinned stranding, tinned conductor or even plated with precious metals such as silver for increased conductivity.

Conductor Insulation

The first protection in any cable is the conductor’s insulation. Our wire and cable extrusion capabilities include a wide range of materials to match your requirements for flexibility, abrasion resistance and environmental conditions. We use the range from basic PVC, PE or PP. We also use insulating materials such as natural rubber, PU, TPE, PTFE (Teflon®) and silicone.

Materials

Polyvinylchloride (PVC)

Polyurethane (PU)

Thermoplastic elastomer (TPE)

Thermoplastic polyester elastomer (TPEE)

Thermoplastic vulcanizate (TPV)

Polytetrafluoroethylene (Teflon®)

Silicone

The hardness or softness of each material can be varied.

Ul® Certified Wire & Cable

There are many standard UL® cable types. UL® standards help designers choose a cable with known specifications instead of creating one from scratch. We are certified by UL® to produce many standard types of wire and cable harnesses.
