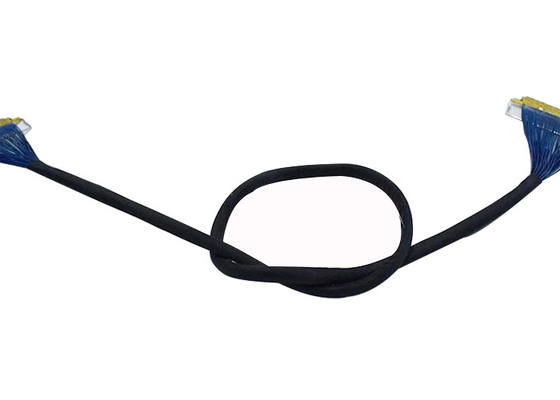

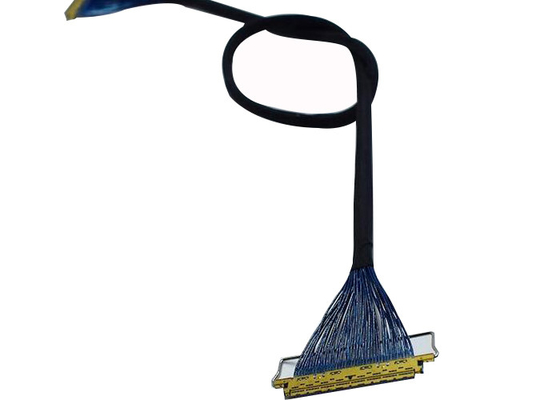

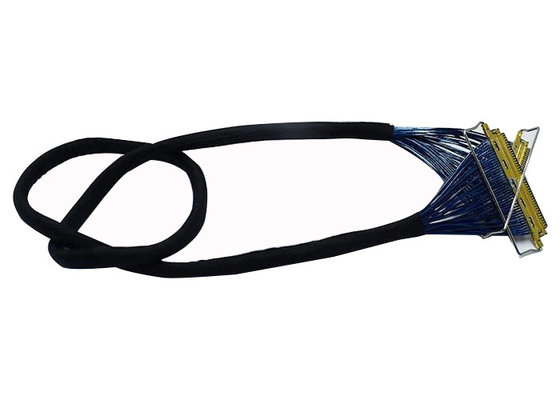

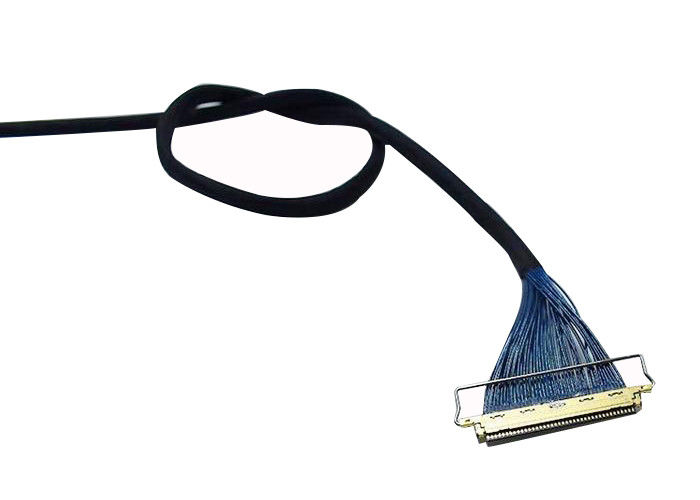

15 Pin 7.3mm 1.0mm 200mm LVDS Video Cable

15pins LVDS Cable 1.0mm Pitch 200mm TV Screen LVDS Connection Cable

Product overview :

LVDS is a differential signaling system. It transmits two different voltages which are compared at the receiver end of the transmission. LVDS uses the difference in voltage between the two wires to encode the information. This differential data used in LVDS is less susceptible to common-mode noise than the single-ended schemes. Unlike single-ended methods, differential transmission uses two wires with opposite current/voltage swings, to convey data.

The advantage of the differential approach in LVDS is that noise is usually coupled on the two cables equally and is then rejected by the receivers. The receiver looks at only the difference between the two signals. The differential signals also tend to radiate less noise due to the cancellation of magnetic fields generated as compared to single-ended signals. If in-line noise and EMI are a concern, shielding the overall cable assembly, as well as introducing methods such as ferrite beads and drain wires are several ways this can be addressed. Shielding not only helps to clean up any noise created by the LVDS cables but it also prevents other electronic components from “talking” to the cables distorting image quality and cable function.

Parameter:

Production equipment :

Fully Automatic Wire Cutting Striping and Crimping Machine

Wire Cutting and Stripping Machine

Multi Core Cable Cutting and De-sheathing Machine

Pneumatic Core Stripper

Wire Cutting Stripping and Twisting Machine

Microprocessor Based Battery Cable Cutting Machine

Pneumatic Cable Outer Jacket Removal Machine

Pneumatic Crimping Machine for Scattered Terminals

Semi Automatic Crimping Machines

Electronic Crimping Presses

Applicators

Toggle Crimping Machines

Wire Stripping and Twisting Machines

Soldering Station

Coupler Assembly Station

Air Compressor ( 3 Hp and 5 Hp)

25 Kva Generator

Microprocessor Based Harness Tester

Production Capacity:

We Make Around Five Million Crimps Per Month and We Have Ambitious Expansion Plans to Make Around Ten Million Crimps Per Month .

Competitivenes…

We Maintain Competitiveness with the Following Steps

• Procurement of Raw Materials from the Most Cost Effective Sources,
• Keeping the Least Inventory.
• Adoption of the Best Process to Increase Productivity to the Optimum Level.
• Adoption of the Latest Techniques,
• Value Engineering as a Continuous Process
• Best Quality Product with Competitive Price.
• 100% Acceptance with Customers (Zero Defects)

Shipping:

1.FedEx/DHL/TNT/UPS/EMS/Aramex/SF for samples, Door-to-Door;

2. By Air or by Sea for batch goods;Airportport receiving;

3. Customers specifying freight forwarders or negotiable shipping methods!

4. Delivery Time: 3-7 days for samples; 10-30 days for batch goods.

FAQ:

Q:What are LVDS Cable Assemblies?

A:Low-Voltage Differential Signaling (LVDS) is a technology addressing the needs of today’s high performance data transmission applications. LVDS is a low voltage differential signaling system which is an electrical system and can run at very high speeds over inexpensive, twisted-pair, stranded copper cables. These twisted pairs maintain the 100ohm differential impedance requires by LVDS data signals. LVDS has become a preferred differential standard due to its capability of delivering high data rates while consuming less power than any other interfacing technologies. LVDS uses high-speed analog circuit techniques to provide multi gigabit data transfers on copper interconnects and is a generic interface standard for high-speed data transmission . This is why the LVDS standard is becoming the most popular differential data transimisson standard in the industry.

Q:Benefits of using LVDS Cables

A:LVDS Cablesare very popular in electronic communication devices like computers. These cables are of great use in networking as well as in analog video interfacing. The length of data transfer cable assembly can be from 1.00 inch to several meters (6-7) depending on the structure and requirement of the LVDS system. LVDS is currently the only design that combines low power dissipation with high speed.

The benefits of LVDS include:

• Compatible to Low-voltage power supply
• Low noise generation
• High noise rejection
• Robust transmission signals
• Ability to be integrated into system level ICs
