Hard work, integrity, win-win cooperation
 |
| Place of Origin: | JIANGSU,CHINA |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-L.015 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 100/200/300/500pcs per bag , then outside carton |
| Delivery Time: | 3-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 50000 PCS/per week |
| Product Name: | HDMI High-Definition LVDS Connection Cable | Outer Diameter: | 5mm |
|---|---|---|---|
| Shape: | Round | Tensile Strength: | Weak |
| Insulation Thickness: | 2mm | Pins: | 30PIN |
| Pitch: | 1.0mm Or Customized | Contact Materia: | Copper |
| Highlight: | 1.0mm LVDS wire,36 AWG LVDS Cable |
||

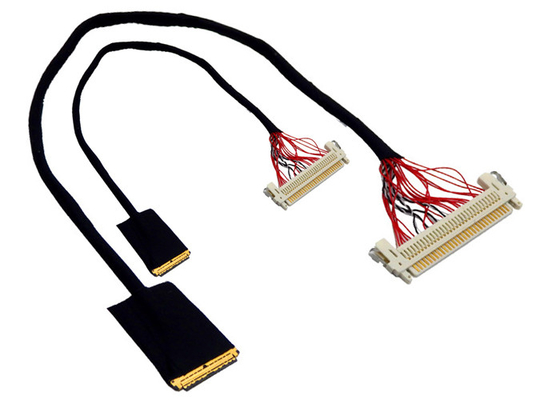

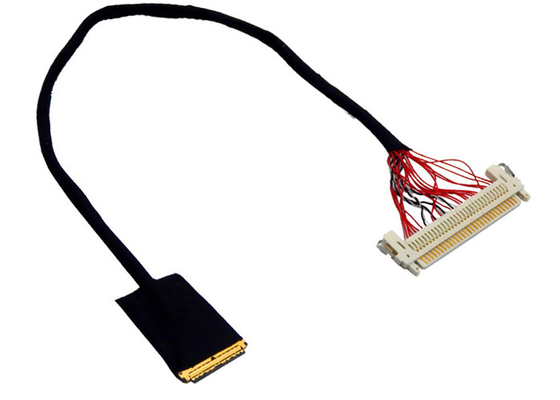

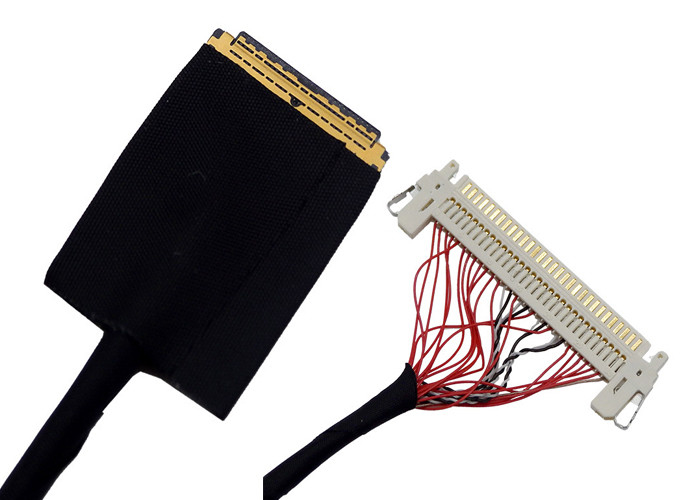

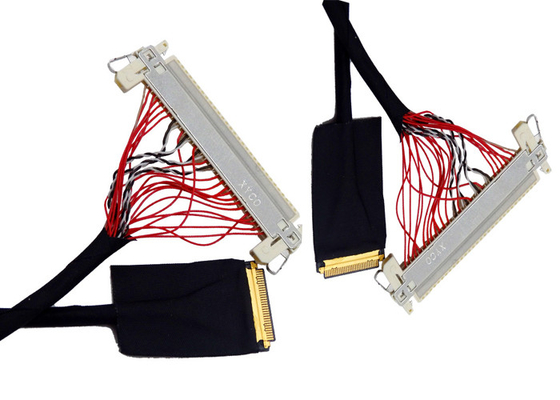

36AWG LVDS Cable 1.0mm Pitch Black HDMI High-Definition LVDS Connection Cable
Product overview :
How to produce a LVDS cable
LVDS Cable means Low Voltage Differential Signaling Cable. It is widely used in many fields .Now, You can see it in LED TV, Note Book etc. Because we usually connect display side and Mother board side together through LVDS Cable. But how to produce a high-quality LVDS cable ?
Parameter:
| Product name | HDMI High-Definition LVDS Connection Cable |
| Outer diameter | 5mm |
| Shape | Round |
| Tensile Strength | Weak |
| Insulation thickness | 2mm |
| Pins | 30PIN |
| Pitch | 1.0mm or customized |
| Insulation material | PE |
| Contact materia | Copper |
| Wire gauge | 36AWG or customized |
| Wire length | 150mm or Customized |
| Wire Color | Black or Customized |
| Certificates | RoHS,CE,UL,TUV,ISO |
| MOQ | Small quantity can be accepted |
| Sample | Samples confirmed first before mass production |
| Sevice | OEM ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | 00/200/300/500pcs per bag , then outside carton |
| Test | Professional breakover and pulling force test before goods sent out |
| Lead time | 3-15 days |
LVDS Cable is a kind of custom cable. We must make a drawing before production. The drawing must shows connector type , length ,Pin assignment and other required information.
Now,please allow us to introduce how to produce a LVDS cables:
1. we cut wire and crimp terminals on wires by using Fully automtic swivel arm crimping machine .
2. we need to test Terminal Pulling Force every hour by using tester as below:
3. assemble panel and then twist wires
4. assemble mother board side connector
5. test length and then the first test for pin assignment ,open, short etc
6. assemble braid.
7. assemble Acetate Cloth tape and fix it
8. the second test for pin assignment ,open ,short etc as below
9. Appearance inspection as below
10. QC sampling inspection and then packing.
Now ,we finish a LVDS Cable.
Our Advantages:
1. Factory and trade integration,
2. Competitive price;
3. Timely delivery;
4. Technical support;
5. Samples for free;
6. High Trade Assurance Level
Our Services
1. Design and provide drawings service
2. Free sample service
3. Respond in time
4. OEM, ODM service
5. After sales guarantee service
What we can produce :We can produce series of iso wire harnesses:Our products are as follows:
1. Industrial Wiring Harness
2. Ffc Flexible Flat Cable
3. Idc Ribbon Cable
4. Lvds Cable
5. Custom Wiring Harness
6. Overmolded Cable Assemblies
7. Communication Wires And Cables
8. High Gain Wifi Antenna
9. New Energy Vehicle Wiring Harness
10. Medical Wiring Harness
11. Automotive Wiring Harness
12. Electronic Wiring Harness
13. Industrial Wiring Harness
14. Converter Adapter Cable
15. Waterproof Cable Wire
