| Place of Origin: | Jiangsu,China |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-L003 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | One product with one PE bag packaging , then outside carton |
| Delivery Time: | 3-15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/Pieces per week |
| Product Name: | HD LCD Screen LVDS Cable | Application: | LCD TV/tablet/advertiser |
|---|---|---|---|
| Connector: | RF51P PHD36P Or Customized | Wire: | 1571 28AWG |
| Wire Material: | PVC + Oxygen-free Pure Copper | Insulation Material: | Rubber, Silica Gel, PE, PVC |
| Length: | Customized | Color: | Customized |
| Highlight: | 28 AWG LVDS Cable,RF51P PHD36P LVDS video cable |
||

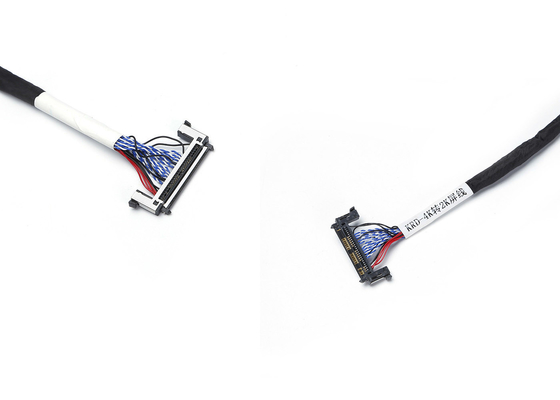

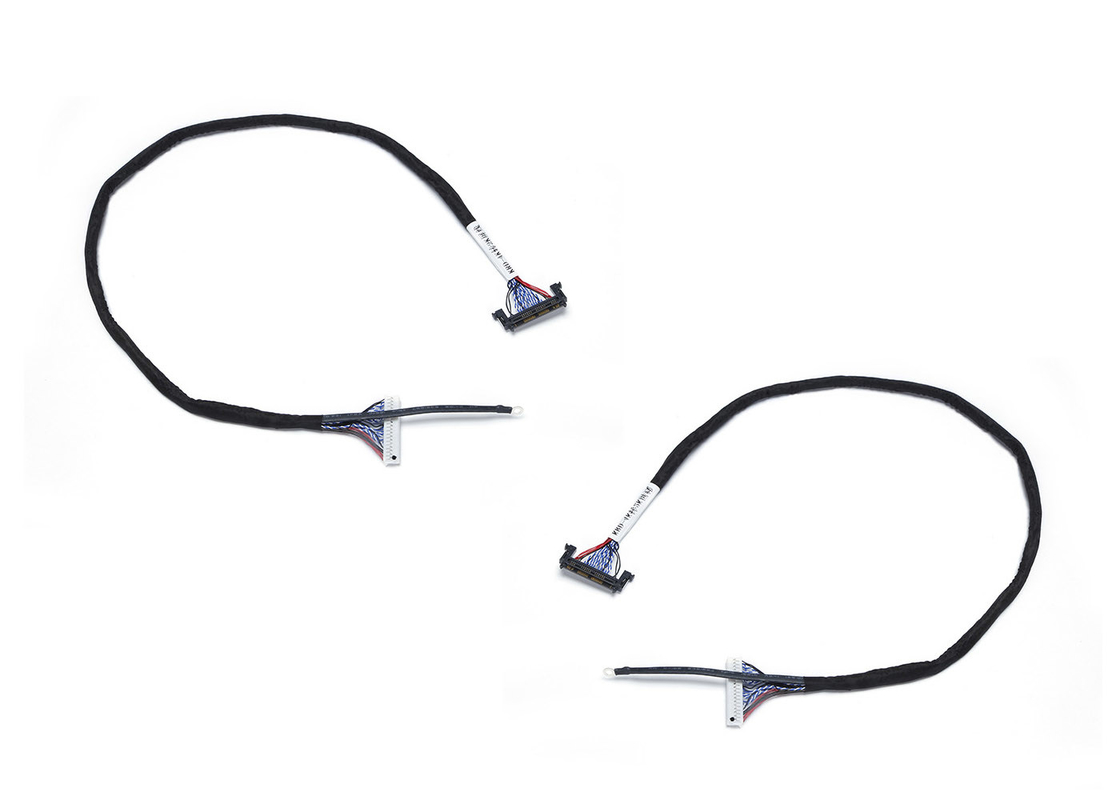

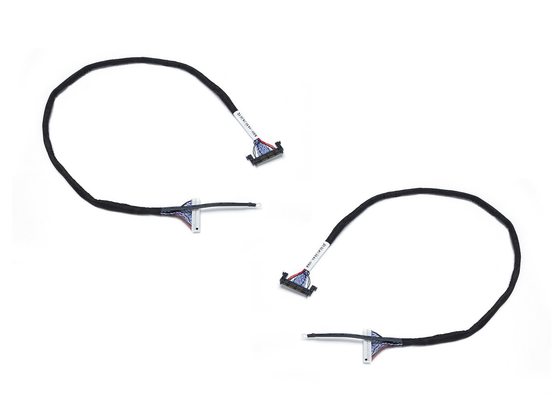

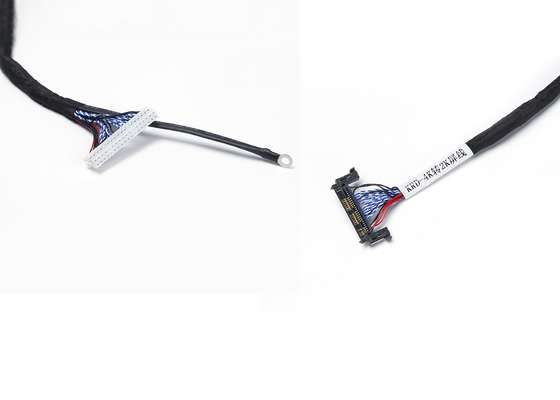

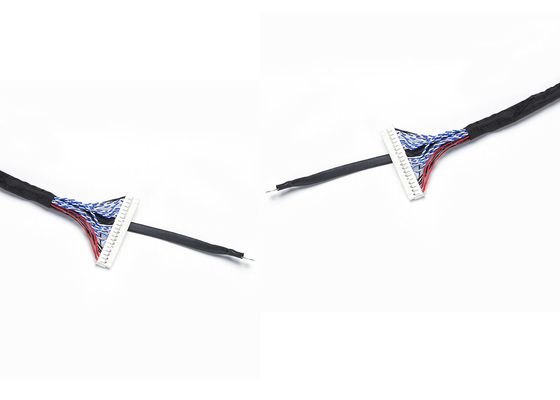

RF51P HD LCD Screen LVDS Cable Dual 8-Bit LVDS HD Oxygen-Free Pure Copper Screen Cable
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-L003 |
| Conductor Materials | Copper, Aluminum, Customized |
| Wire Materials |
PVC + oxygen-free pure copper or Customized |
| Insulation Material | Rubber, Silica gel, PE, PVC |
| Connector Type | Customized |
| Length | 1571 28AWG or Customized |
| Application | Electronic, Automotive, Vehicles, Home application etc. |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | One product with one PE bag packaging , then outside carton |
| Test | 100% tested before goods sent out |
Product introduction
20PIN single 6 definition:
1: Power supply 2: Power supply 3: Ground 4: Ground 5: R0-6: R0+ 7: Ground 8: R1- 9: R1+ 10: Ground 11: R2- 12: R2+ 13: Ground 14: CLK-15: CLK+ 16 Empty 17 empty 18 empty 19 empty 20 empty
The resistance between each set of signal lines is (about 120 ohms for digital watches)
20PIN double 6 definition:
1: Power supply 2: Power supply 3: Ground 4: Ground 5: R0-6: R0+ 7: R1- 8: R1+ 9: R2- 10: R2+ 11: CLK-12: CLK+ 13: RO1- 14: RO1+ 15: RO2 -16: RO2+ 17: RO3- 18: RO3+
19: CLK1- 20: CLK1+
The resistance between each set of signal lines is (about 120 ohms for digital watches)
20PIN single 8 definition:
1: Power supply 2: Power supply 3: Ground 4: Ground 5: R0-6: R0+ 7: Ground 8: R1- 9: R1+ 10: Ground 11: R2- 12: R2+ 13: Ground 14: CLK-15: CLK+ 16 : R3- 17: R3+
The resistance between each set of signal lines is (about 120 ohms for digital watches)
30PIN single 6 definition:
1: empty 2: power supply 3: power supply 4: empty 5: empty 6: empty 7: empty 8: R0-9: R0+ 10: ground 11: R1- 12: R1+ 13: ground 14: R2- 15: R2+ 16: Ground 17: CLK-18: CLK+ 19: Ground 20: Empty-21: Empty 22: Empty 23: Empty 24: Empty 25: Empty 26: Empty 27: Empty 28 Empty 29 Empty 30 Empty
The resistance between each set of signal lines is (about 120 ohms for digital watches)
30PIN single 8 definition:
1: empty 2: power supply 3: power supply 4: empty 5: empty 6: empty 7: empty 8: R0-9: R0+ 10: ground 11: R1- 12: R1+ 13: ground 14: R2- 15: R2+ 16: Ground 17: CLK-18: CLK+ 19: Ground 20: R3- 21: R3+ 22: Ground 23: Empty 24: Empty 25: Empty 26: Empty 27: Empty 28 Empty 29 Empty 30 Empty
The resistance between each set of signal lines is (about 120 ohms for digital watches)
30PIN double 6 definition:
1: Power supply 2: Power supply 3: Ground 4: Ground 5: R0-6: R0+ 7: Ground 8: R1- 9: R1+ 10: Ground 11: R2- 12: R2+ 13: Ground 14: CLK-15: CLK+ 16 : Ground 17: RS0-18: RS0+19: Ground 20: RS1- 21: RS1+ 22: Ground 23: RS2- 24: RS2+ 25: Ground 26: CLK2- 27: CLK2+
The resistance between each set of signal lines is (about 120 ohms for digital watches)
30PIN double 8 definition:
1: Power supply 2: Power supply 3: Power supply 4: Empty 5: Empty 6: Empty 7: Ground 8: R0-9: R0+ 10: R1- 11: R1+ 12: R2- 13: R2+ 14: Ground 15: CLK-16 : CLK+ 17: Ground 18: R3- 19: R3+ 20: RB0-21: RB0+ 22: RB1- 23: RB1+ 24: Ground 25: RB2- 26: RB2+ 27: CLK2- 28: CLK2+ 29: RB3- 30: RB3+
The resistance between each set of signal lines is (about 120 ohms for digital watches)
Generally, 14PIN, 20PIN and 30PIN are LVDS interfaces.
☀ We have IPEX LVDS CABLE, KEL LVDS CABLE, HIROSE LVDS CABLE, ACES LVDS CABLE,JAE LVDS CABLE, MOLEX LVDS CABLE, STARCONN LVDS CABLE,FFC LVDS CABLE, JST LVDS CABLE etc.
☀ Our Lvds cables can be made in different connector/length/pitch/pins etc., if you need, we can accept customized.
☀ We can produce Lvds cable,LED cable,Flat IDC cable,FFC,Waterproof cable,Wire harness and so on.
☀ If you require a special Lvds cable not found here, you can create your own Lvds cable by calling our sales department.
