| Place of Origin: | Jiangsu,China |
| Brand Name: | Sanyouhe |
| Certification: | UL、IATF、ISO |
| Model Number: | SYH-L004 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | One product with one PE bag packaging , then outside carton |
| Delivery Time: | 3-15 days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000 Piece/Pieces per week |
| Product Name: | Screen Cable LVDS Cable | Application: | Display |
|---|---|---|---|
| Pin: | 40pins | Conductor Material: | Copper, Aluminum, CCAM, CCA, Customized |
| Insulation Material: | Rubber, Silica Gel, PE, PVC | Connector: | I-PEX20454-40P Or Customized |
| Length: | Customized | Color: | Customized |
| High Light: | LVDS coaxial cable,40 pins LVDS display cable |
||

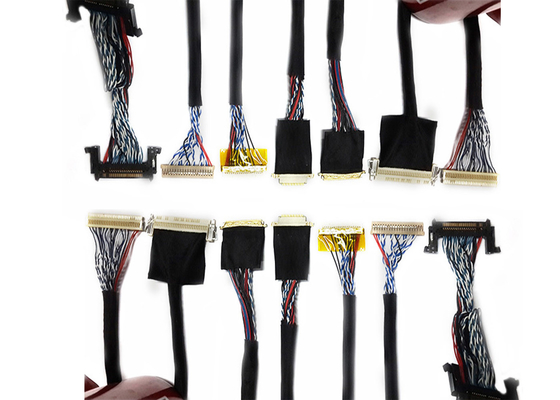

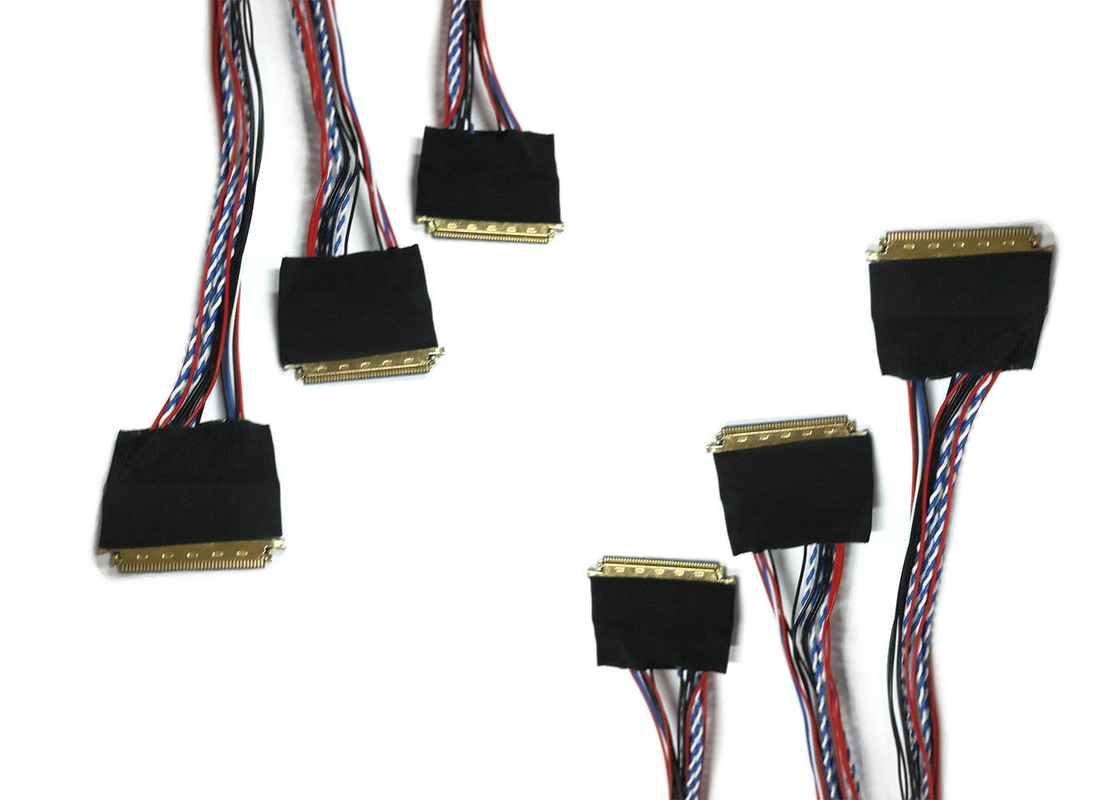

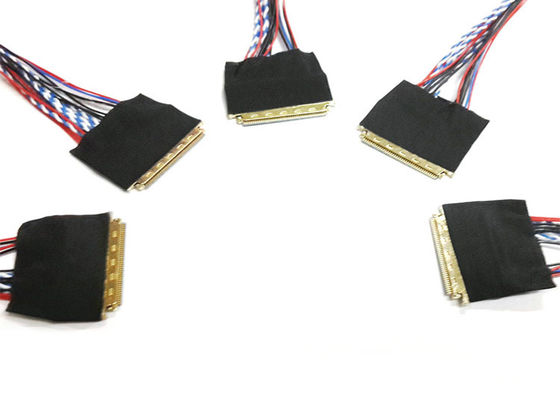

I-PEX20454-40P Screen Cable LVDS Ultra-Fine Coaxial Screen Cable 4K HD Display Cable
Product introduction
characteristic
It provides a high data transfer rate while having very low power consumption. In addition, it has many other advantages:
1. Power supply voltage compatibility as low as 2V
2. Low noise
3. High noise suppression capability
4. Reliable signal transmission
5. Can be integrated into system-level IC
6. The data rate of products using LVDS technology can be from several hundred Mbps to 2Gbps.
7. It is driven by current. The voltage is obtained by placing a load on the receiving end. When the current flows in the forward direction, the output of the receiving end is 1, and otherwise it is 0.
8. Its swing range is 250mv-450mv.
9. This technology is based on ANSI/TIA/EIA-644LVDS interface standard.
Parameters:
| Place of Origin | Jiangsu,China |
| Brand Name | SYH |
| Model Number | SYH-L004 |
| Conductor Materials | Copper, Aluminum, Customized |
| Wire Materials | Customized |
| Insulation Material | Rubber, Silica gel, PE, PVC |
| Connector Type | Customized |
| Length | Customized |
| Application | Electronic, Automotive, Vehicles, Home application etc. |
| MOQ | Small quantity can be accepted |
| Sample | Sample can be provided for evaluating |
| Sevice | OED ODM accepted |
| Delivery Time | 3-15 days upon receipt of payment |
| Packaging | One product with one PE bag packaging , then outside carton |
| Test | 100% tested before goods sent out |
Collapse and edit the interface standard of this paragraph
The LVDS interface is a common interface standard for LCD Panels, and most of them are used on displays with a size of 7 inches or more. Take 8-bit Panel as an example, including 5 groups of transmission lines, 4 of which are data lines, representing Tx0+/Tx0-...Tx3+/Tx3-. There is also a group of clock signals, representing TxC+/TxC-. Correspondingly, there are 5 groups of receiving lines at the end of the Panel. If it is a 6-bit Panel, there are only 3 sets of data lines and a set of clock cables.
FAQ
Q: When will you start to help design?
A: We sketch simple solution for initial discussion, after quotation and order placed then start to drawing and double confirm with client for the design.
Q:How can i get the price?
A:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q:Can I buy samples placing orders?
A:Yes.Please feel free to contact us.
Q:What is your lead time?
A:It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
Q:Can we get support if we want a special outlook and function addition ?
A:No problem ! Our R&D team will support you develop a new kind and best solution for you !
Q: What is the warranty for your products?
A:1 year
